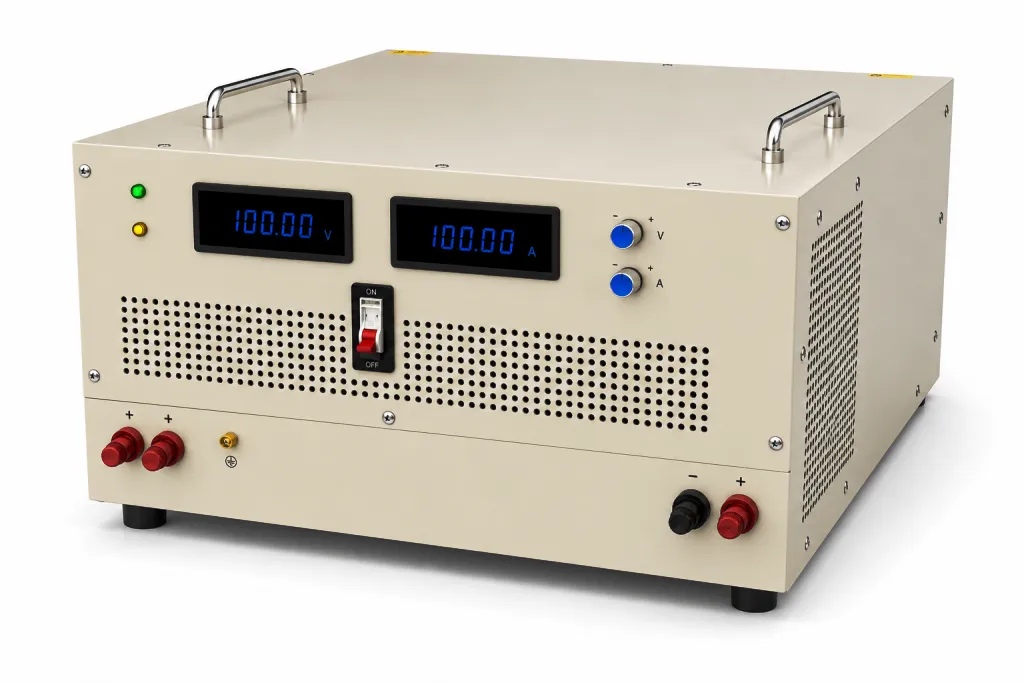

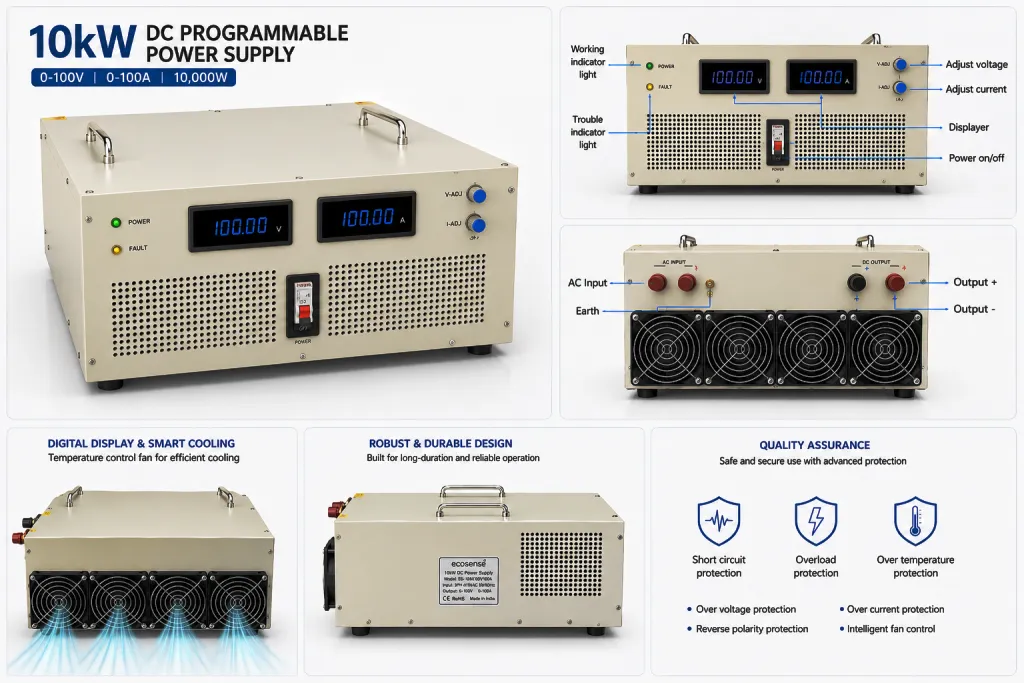

10kW Programmable DC Power Supply

The 10kW DC Programmable Power Supply is a high-performance and high-precision DC power source designed for demanding industrial, laboratory, EV, and power electronics applications. It provides a programmable output range of 0–100V and 0–100A, enabling precise voltage and current regulation for high-power testing and validation environments. Equipped with intelligent monitoring, programmable control functionality, and comprehensive protection features, the system ensures stable, reliable, and efficient operation.

Key Features

High-Power 10kW DC Output: Delivers 10kW programmable output power with an adjustable range of 0–100V DC and 0–100A, making it suitable for high-power testing, industrial systems, and research applications.
Programmable Voltage and Current Control: Allows users to precisely configure voltage and current parameters according to application requirements, enabling flexible testing and controlled operation.
Constant Voltage (CV) and Constant Current (CC) Operation: Supports automatic switching between CV and CC modes to maintain stable output performance under varying load conditions.
High Precision and Low Ripple Performance: Designed with advanced digital control architecture to provide accurate regulation, high resolution, and low ripple output for repeatable testing results.
Real-Time Digital Monitoring: Integrated digital display continuously monitors and displays output voltage, output current, operating mode, and system status information.
0–5V Analog Control Interface: Supports external voltage and current adjustment through 0–5V analog input, enabling easy integration with controllers, PLCs, and automation systems.
Comprehensive Protection Mechanisms: Includes built-in over-voltage, over-current, short-circuit, overload, reverse polarity, and over-temperature protection to ensure safe and reliable operation.
Intelligent Thermal Management System: Features a temperature-controlled cooling mechanism that automatically adjusts cooling performance according to operating conditions for improved efficiency.
Programmable Communication Support: Supports optional communication interfaces such as RS485, USB, and Ethernet for remote monitoring, software integration, and automated testing systems.
Continuous High-Power Operation: Built with industrial-grade components and robust construction for long-duration, continuous operation under demanding conditions.
Wide Application Compatibility: Suitable for battery testing, EV powertrain development, fuel cell testing, motor controller validation, industrial automation, power electronics development, and laboratory research applications.

System Capabilities

Output & Performance Capabilities

Programmable 10kW DC output power
Adjustable 0–100V output voltage range
Adjustable 0–100A output current range
Supports Constant Voltage (CV) and Constant Current (CC) operation
High-precision and low-ripple output characteristics

Control & Monitoring Capabilities

Digital display for voltage, current, and operating status
0–5V analog input for external control
Real-time monitoring of output parameters
Programmable operation for automated testing systems

Protection & Reliability Capabilities

Short-circuit protection
Overload and over-current protection
Over-temperature protection
Reverse polarity protection
Intelligent cooling system for continuous operation

Technical Description

The 10kW DC Programmable Power Supply is designed to provide precise and stable DC power for high-power testing, industrial automation, and research applications.
Delivers an adjustable output range of 0–100V DC and 0–100A, supporting diverse application requirements with accurate regulation.
Supports Constant Voltage (CV) and Constant Current (CC) operating modes for stable operation under varying load conditions.
Utilizes advanced digital control technology to achieve high regulation accuracy and low ripple output characteristics.
Features an integrated digital display interface for real-time monitoring of voltage, current, power output, and operating status.
Supports 0–5V analog input for external voltage and current control and easy integration with automation systems.
Enables programmable operation and communication interfaces for automated testing, remote control, and data acquisition systems.
Includes protection mechanisms such as over-voltage, over-current, short-circuit, reverse polarity, and over-temperature protection for safe operation.
Equipped with intelligent cooling and thermal management systems for reliable long-duration operation at high power levels.
Suitable for battery testing, EV systems, fuel cell testing, motor drives, industrial automation, power electronics development, and research laboratories.

Technical Specifications

Electrical and Performance Specifications

Parameter	Specification
Output Power	10kW
Output Voltage Range	0-100 V DC
Output Current Range	0-100 A
Operating Modes	Programmable

Control & Interface

Parameter	Specifications
Analog Control Input	0-5V
Display	Digital LCD/LED
Programming Resolution	High Precision

Safety & Mechanical

Parameter	Specifications
Protection	OVP, OCP, SCP, OTP
Cooling	Forced Air Cooling
Mounting	Rack Mount/ Standalone
Input Supply	AC Single Phase, 220 V
