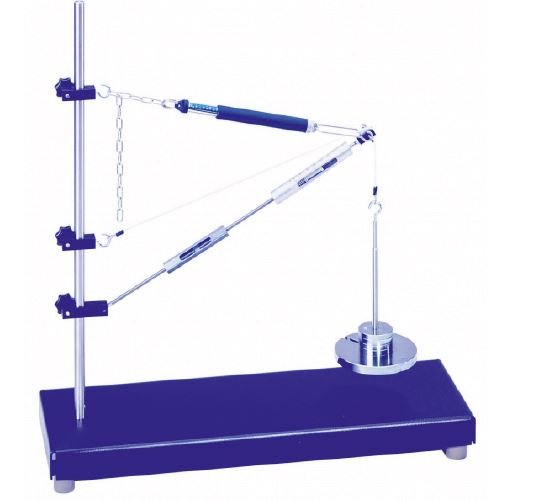

FORCES IN A CRANE JIB (ECS188)
This apparatus allows the determination of forces in a planar crane jib system. It enables the study of tensile and compressive bar forces, vectorial handling of forces, and the analysis of various jib configurations.
Key Features
-
Integrated Spring Balances: For direct measurement of tensile (0–50 N) and compressive (0–50 N) bar forces with 5 N and 1 N graduations.
-
Planar Force System: Allows handling of tensile and compressive forces up to 50 N.
-
Retaining Bar: Made of stainless steel for accurate and stable setup.
-
Sturdy Base: Metal base with handles for easy transportation and stability.
Learning Module
Force Measurement
-
Determination of tensile forces
-
Determination of compressive forces
-
Vectorial handling of forces in a planar system
-
Maximum load study up to 50 N
Graphical and Analytical Comparison
-
Graphical breakdown of forces by force parallelogram
-
Analytical calculation of bar forces
-
Experimental measurement using spring balances
-
Comparison of analytical, graphical, and experimental results
Applications in Engineering
-
Study of forces in different crane jib configurations
-
Analysis of central force systems
-
Verification of static equilibrium
-
Understanding tensile and compressive behavior
